Hi guys!

This is my first time on the forum! I somehow couldn't find anything on the web for this problem so I hoped you guys here could help me!
Ive build my own pc for the second time and everything went great with the build. Everything is being seen so that was a plus.
So I started to install Windows on my m.2 SAMSUNG SSD 970 eve 1tb. This also went according to plan. But when it went for the restart It boots my pc up again and shows the American Megatrends screen again as shown in the picture.

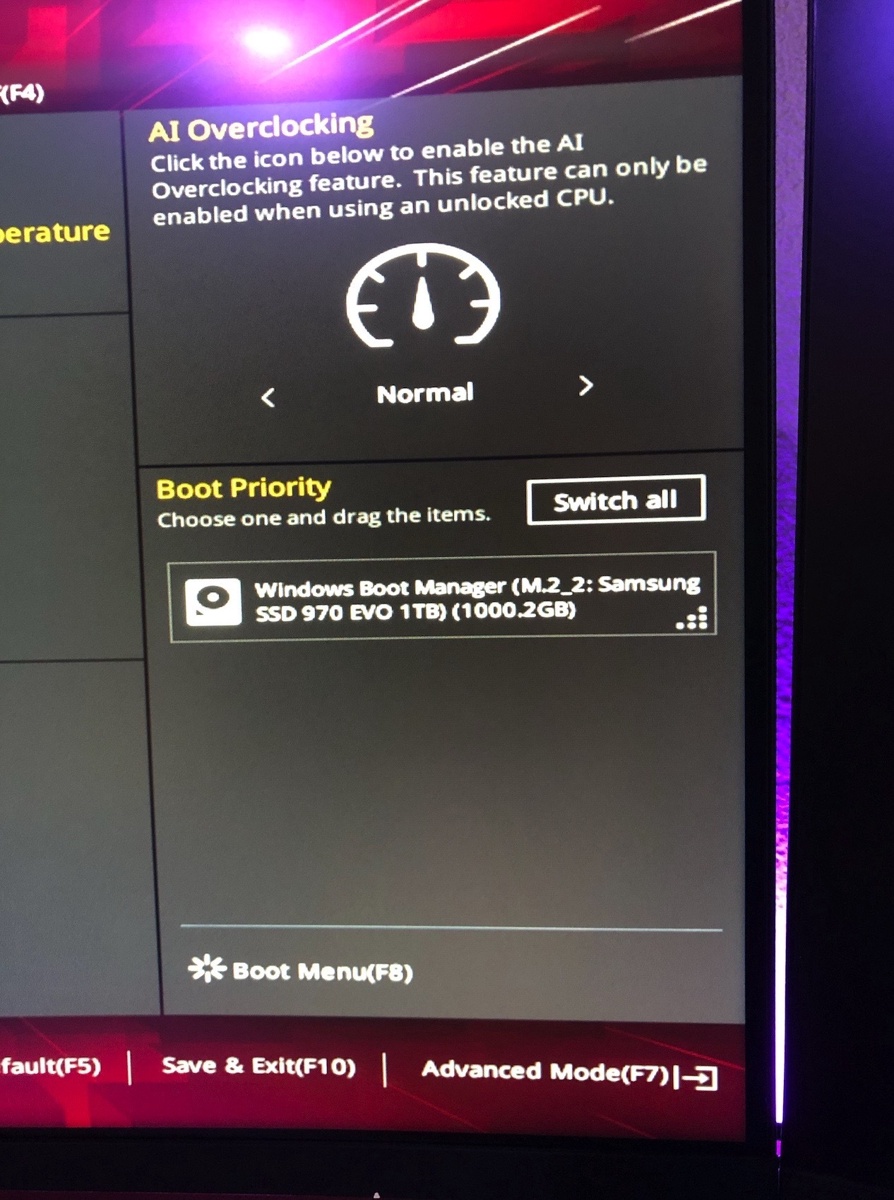

So I checked. The m.2 is recognised as a boot priority card and its called windows boot manager(name of the m.2) now. But somehow it doesn't start windows. Now the first time I installed I left the usb in when it did the restart. So I read you are supposed to remove it when it goes into countdown. So I tried installing again and did that. But somehow it still won't boot windows.

Im using a z490e Motherboard and a i9 10900k as CPU if you guys need more information be free to ask! I hope someone can help me!



·
Team Manager, Microsoft Support
Joined
·
26,760 Posts
Where did you get Windows from and what version is it?


·
Team Manager, Microsoft Support
Joined
·
26,760 Posts
If you can get to UEFI, there might be a clue.


·
Registered
Joined
·
4 Posts
Discussion Starter #5
If you can get to UEFI, there might be a clue.
Yes I can get to the UEFI BIOS Utility I don't know where I would have to look though. Sorry for that. Last time I installed windows on a new build pc everything went fine.


·
Registered
Joined
·
4 Posts
Discussion Starter #6
Just a little update! I got windows to work and got the the full installation etc.. I started installing drivers and therefore I had to restart my pc. Problem is it shows me the American Megatrends screen again. And the only way to get to windows is to press the button to boot the M.2 on itself


·
Team Manager, Microsoft Support
Joined
·
26,760 Posts
That's why I suggested the bios. Helps figuring out the boot order.


·
Registered
Joined
·
40,876 Posts

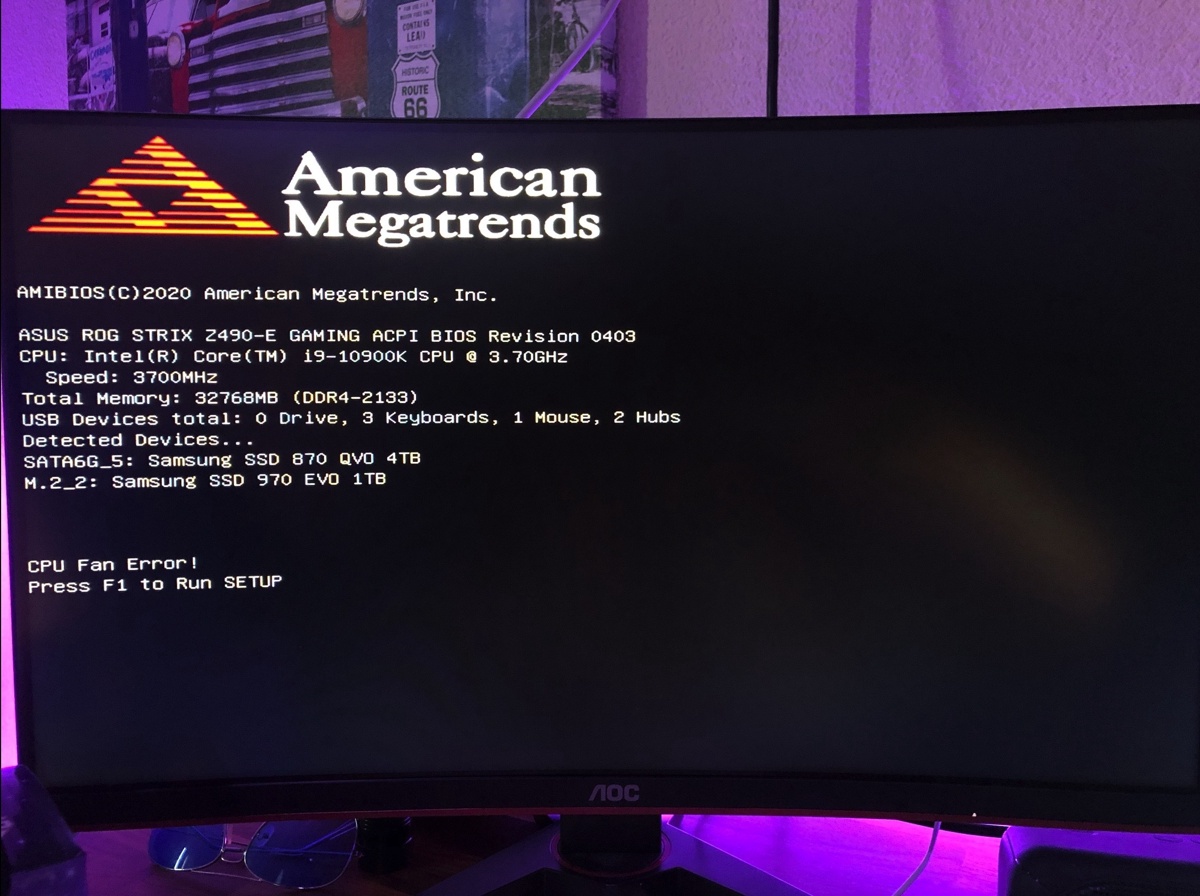

The message in your 2nd pic shows that there is a CPU Fan Failure. Make sure fan is spinning and not blocked by any wires. You may need to remove the Heat Sync cooler, replace the Fan and reapply the Thermal Paste


·
Moderator , Windows Tech Team , Hardware Tech T
Operating Systems || Hardware || Most Tech Stuff
Joined
·
3,136 Posts
Spunk is spot on !! ^^ check if your CPU fan is connected.
