I need to know where to plug in the power connector to the JPANEL1 pins. I just bought a biostar P4M900M4 Micro ATX Intel Motherboard and I can not find where to put the power button plug into. Thanks for the help

linderman

can you give us a up close digital pic of your J panel header ??????

__________________



If you cant be polite and friendly; then please be silent.

linderman

BTW do you have the mobo manual ????????

__________________



If you cant be polite and friendly; then please be silent.

tonythetiger

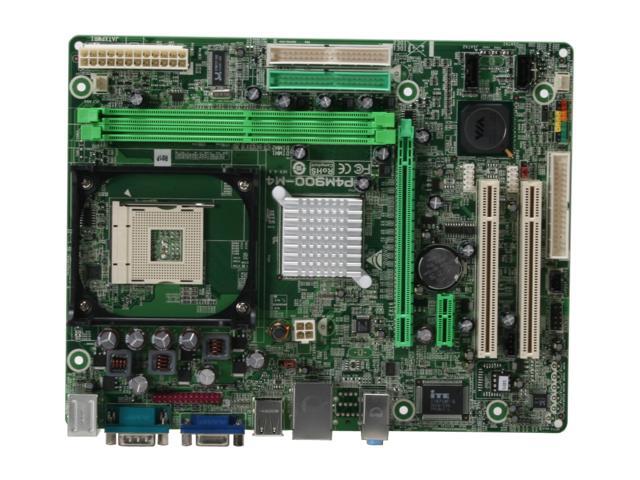

http://c1.neweggimages.com/NeweggIma...138-079-04.jpg I got this photo from newegg. Its the one above the FDD connector. The manual says that theres a on/off switch on the top side but when i go to plug in the plug it wont fit.

linderman

are you replacing a motherboard from an OEM system like a Dell or Compaq or E-machines etc that has one big plug for all the wiring connected inside the computer case ?

__________________



If you cant be polite and friendly; then please be silent.

tonythetiger

I'm replacing a gateway motherboard, it used a square plug that had 2 rows of holes with 1 covered hole on the corner. it looked something like this: ::::.

linderman

ok thought so


that gateway plug in not going to fit onto a retail motherboard like it did on the OEM motherboard

you have two choices

A) buy a cheap case and transplant all the guts of your gateway into the new system >>>> the new case will come with connectors that will work with your new board

B) you can go to any PC shop and have them cut you off some leads from old dead systems / we all have these lying around the shop! then you put those plug connections onto your new board / then trace where the wires go from the gateway plug to each termination >>>>> example = two wires in that plug will go to the case power switch ......... cut off the gateway plug and splice the wires from the gateway case power switch to the two wires you installed onto the motherboard which came from the dead system @ computer shop this actually works quite well

you can buy cases at newegg like the coolermaster centurion for about $45.00 to $50.00

a rosewill or raidmax case probably even cheaper >>>>>>> you would need a MED ATX case

if you need more help or have more questions let me know
