[SOLVED] How to properly configure ram HELP

This is a discussion on [SOLVED] How to properly configure ram HELP within the RAM and Power Supply Support forums, part of the Tech Support Forum category. Hello I just built a new system I am running an Asus sabertooth p67 with i7 2600k and win 7


Reply

Thread Tools Search this Thread
Old 02-06-2012, 10:41 AM   #1
Registered Member

Join Date: Oct 2010
Posts: 122
OS: win 7 pro 64



Hello

I just built a new system I am running an Asus sabertooth p67 with i7 2600k and win 7 pro 64 bit

I am running G Skill Sniper ram: F3-14900cl9d-8gbsr. DDR3-1866 pc3 14900

Its 2 sticks at 4gb per stick 8gb total. The RAM is installed in slots A2 and B2 per recommendation in manual.


The memory should run at 1866 but is currently running at 1600. I have configured nothing in the bios and need your help to properly configure the ram. I have been building computers for a long time but never really learned how to tweek them for optimal performance. I plan to learn how to OC this system later on when I get a proper cooling fan for the CPU...but thats another day. Today lets just learn how to configure the memory to run at 1800 as advertised :)

Thanks in advance.

-Gun

__________________
Gun Jam is offline   Reply With Quote
Old 02-06-2012, 01:51 PM   #2
Team Manager - Hardware

Tyree's Avatar

Join Date: May 2009
Location: Illinois
Posts: 51,536
OS: XP Pro-7



Memory Standard for the Asus sabertooth p67 is DDR3 1866/1800/1600/1333/1066 so the RAM "should" run at it's rated speed.
Where are you seeing the 1600MHz speed?

__________________



All PC's are not the same. Posting your PC specs will help us to assist you quicker and effectively.
Tyree is offline   Reply With Quote
Old 02-06-2012, 04:05 PM   #3
Registered Member

Join Date: Oct 2010
Posts: 122
OS: win 7 pro 64



1) Bios reports speed at 1600. (I saw it somewhere I dont remember exactly where)

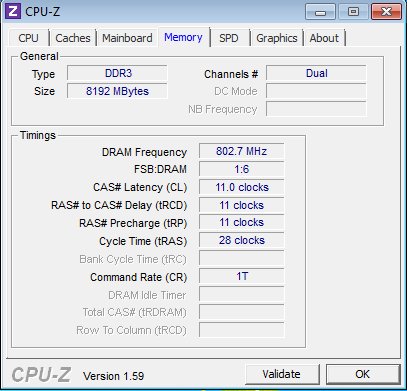

2) CPUZ / memory tab / DRAM Frequency = 800 (Multiply by 2 you get 1600.)

Thanks

-Gun
__________________
Gun Jam is offline   Reply With Quote
Old 02-07-2012, 02:14 PM   #4
Registered Member

Join Date: Oct 2010
Posts: 122
OS: win 7 pro 64

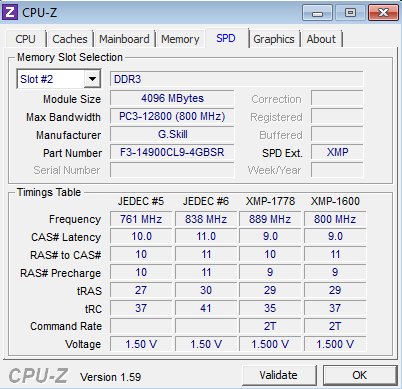

Here are some photos of CPUZ

G skill says the memory is "Speed DDR3-1866 (PC3 14900)"

But I dont think im getting 1866 out of it...am I.


Let me know

Thanks again

-Gun




__________________
Gun Jam is offline   Reply With Quote
Old 02-07-2012, 03:39 PM   #5
Team Manager - Hardware

Tyree's Avatar

Join Date: May 2009
Location: Illinois
Posts: 51,536
OS: XP Pro-7



DRAM Frequency shows 802.7 so the RAM is running at 1605.4.
You will need to adjust the RAM speed using the Bios.
__________________



All PC's are not the same. Posting your PC specs will help us to assist you quicker and effectively.
Tyree is offline   Reply With Quote
Old 02-07-2012, 04:22 PM   #6
Registered Member

Join Date: Oct 2010
Posts: 122
OS: win 7 pro 64



Okay Ive never done anything like that before how would one proceed?
__________________
Gun Jam is offline   Reply With Quote
Old 02-09-2012, 11:21 AM   #7
Registered Member

Join Date: Oct 2010
Posts: 122
OS: win 7 pro 64



I went to bios and then advanced menu. I changed Ram frequency from AUTO to 1866.

CPU Z / Memory tab (1st photo shown above) now reports 936 Mhz for DRAM Frequency.

I think I got it...system seems to be running okay...is there anything else I should look into memory speed wise?

-Gun
__________________
Gun Jam is offline   Reply With Quote
Old 02-09-2012, 11:23 AM   #8
Moderator Hardware Team

Join Date: Apr 2007
Posts: 15,476
OS: Windows 7

My System


some asus boards default the ram when its above a certain speed and you have to change it in the BIOS. The method you have done is correct.

well done and good luck.
__________________


Microsoft Certified Professional
compTIA Certified Professional
greenbrucelee is offline   Reply With Quote
Old 02-09-2012, 12:00 PM   #9
Registered Member

Join Date: Oct 2010
Posts: 122
OS: win 7 pro 64



Thanks for letting me know green!

Ill have some overclocking questions for you in a bit :)

Thanks again!

-Gun
__________________
Gun Jam is offline   Reply With Quote
Old 02-09-2012, 01:58 PM   #10
Team Manager - Hardware

Tyree's Avatar

Join Date: May 2009
Location: Illinois
Posts: 51,536
OS: XP Pro-7



Glad to see you worked it out.

__________________



All PC's are not the same. Posting your PC specs will help us to assist you quicker and effectively.
Tyree is offline   Reply With Quote
